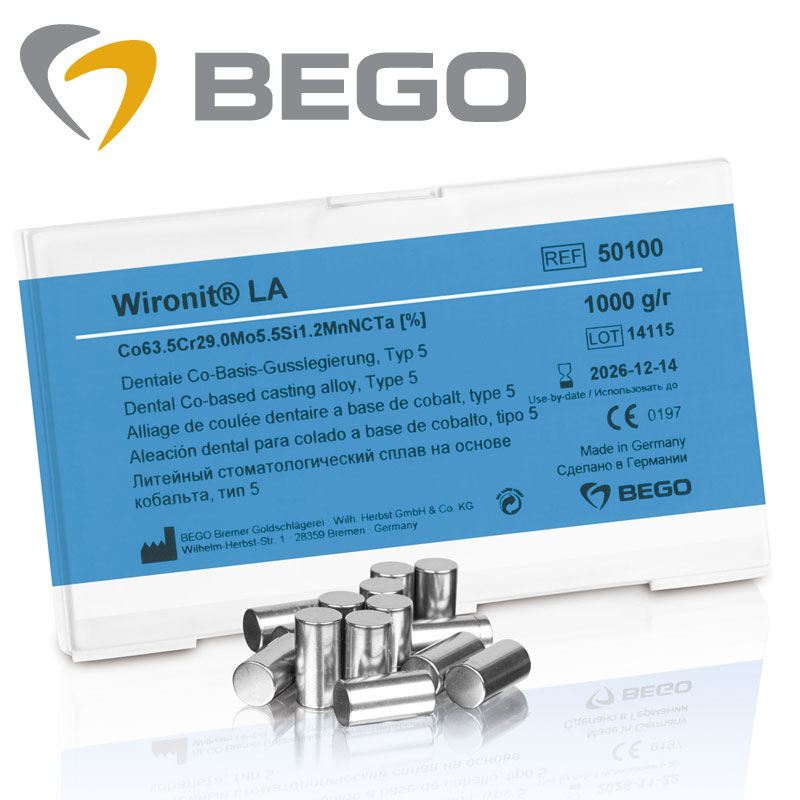

Wironit® LA Partial denture alloy specially developed for laser welding
- Wironit® LA – wide range of indications for reliable application in the partial denture and combination technique
- Controlled carbon content and the addition of tantalum ensure excellent laser welding properties even in extreme cases
- Low thermal conductivity means high wearing comfort for the patient
- Thanks to the ductile yield of 8%, clasps can be activated without any problem
- Biocompatible and corrosion-resistant – biocompatibility verified by an independent institute
Wironit® LA: During wax-up, the casting funnel former must be positioned 10 mm above the highest point of the wax-up, to avoid the risk of defects in the cast object.
Composition in % by Mass Co 63.5, Cr 29, Mo 5 , Si 1.2, Mn, N, C, Ta each < 1
Technical data
- Type (ISO 22674)* 5 Density [g/cm3] 8.2
- Preheating temperature [°C] 950–1050
- Casting temperature [°C] approx. 1450
- Melting range [°C] 1300–1340
- Modulus of elasticity [GPa] approx. 220
- Elongation limit (Rp0.2) [MPa] 640
- Tensile strength (Rm) [MPa] 940
- Ductile yield (A5) [%] 8
- Vickers hardness (HV10) 360
1 Kg – Ref: 50100
