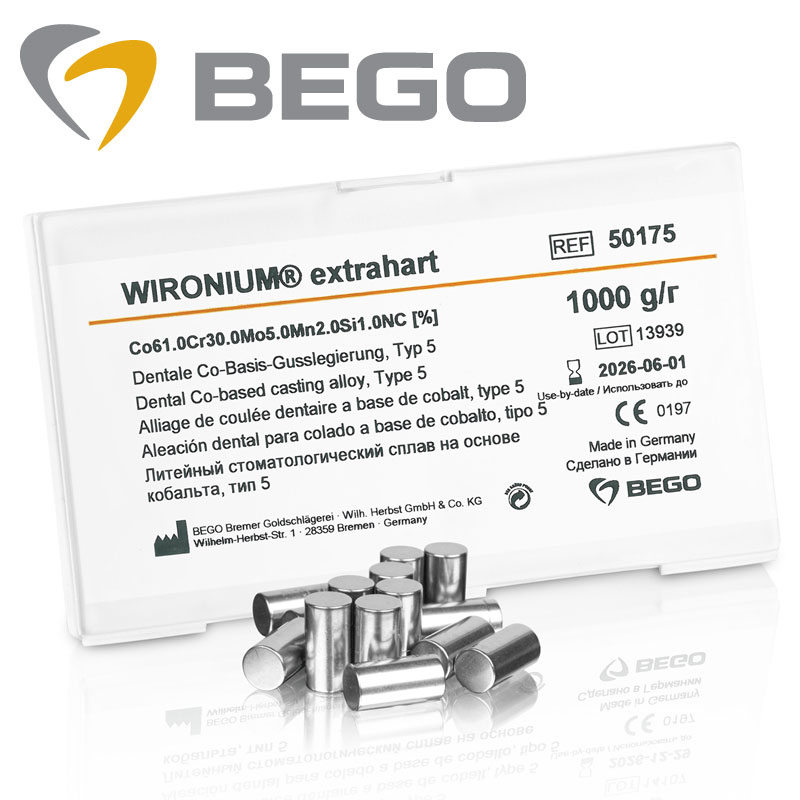

Wironium – Extra Hard 1 kg

Wironium® Extra Hard Cobalt chrome partial denture alloy

• Ideal when an alloy with higher strength and slightly lower ductile yield is required
• Very slender designs possible – for high patient comfort
• Reduced carbon content – particularly well suited for laser welding
• Biocompatible and corrosion-resistant – biocompatibility verified by an independent institute

Composition in % by Mass Co 63, Cr 29.5, Mo 5, Si 1, Mn, Fe, N, C each

Technical data

• Type (ISO 22674)* 5 Density [g/cm3] 8.4
• Preheating temperature [°C] 950–1050
• Casting temperature [°C] approx. 1450
• Melting range [°C] 1330–1350
• Modulus of elasticity [GPa] approx. 220
• Elongation limit (Rp0.2) [MPa] 670
• Tensile strength (Rm) [MPa] 970
• Ductile yield (A5) [%] 7.5
• Vickers hardness (HV10) 350

1 Kg Ref: 50175
