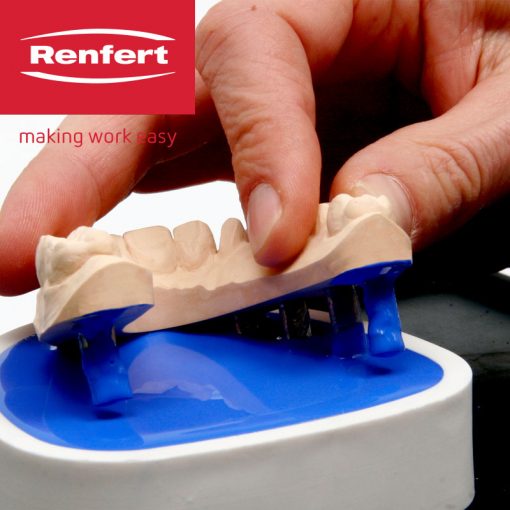

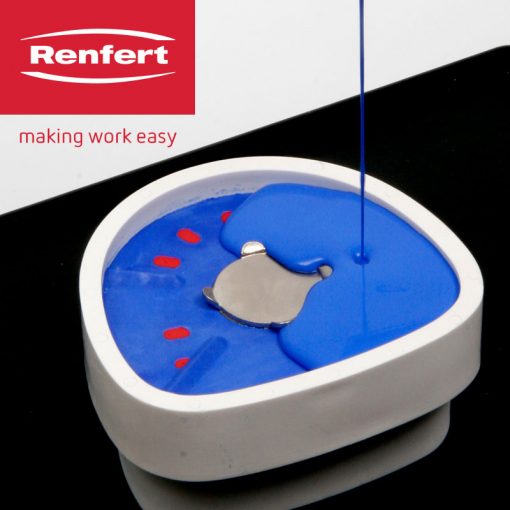

Pin-Cast – Model base former
Model base production kit for effective formation of model bases for plaster arches.
Advantages
- Saves time and material.
- Straight forward base system with reusable parts.
- Variable base height and size.
Details
- Accurately fitting primary and secondary bases.
- Easy removal and precise relocation of the models.
- Corrosion resistant discs and magnet holders.

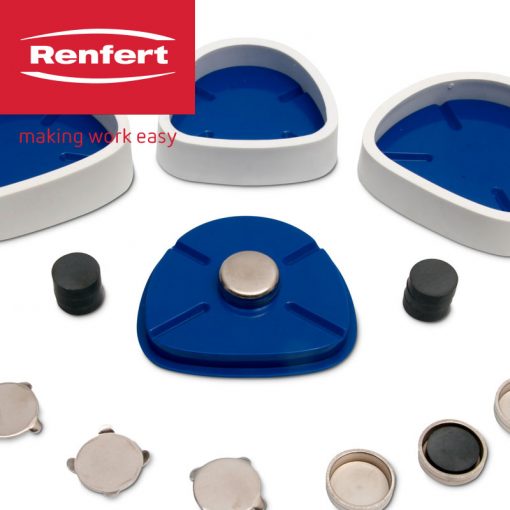

Pin-Cast set for Bi-Pin short sleeve (No.326) 2 model base former set large, 1 model base former set small, 2 rubber rings large, 1 rubber ring small, 10 magnets, 10 magnet holders, 40 retention discs – Ref: R410-0326
Pin-Cast set for Bi-Pin long sleeve (No.346) 2 model base former set large, 1 model base former set small, 2 rubber rings large, 1 rubber ring small, 10 magnets, 10 magnet holders, 40 retention discs – Ref: R410-0346
Pin-Cast set for smart pin (No.366, Bi-V-Pin (No. 328 with sleeve), 2 model base former set large, 1 model base former set small, 2 rubber rings large, 1 rubber ring small, 10 magnets, 10 magnet holders, 40 retention discs – Ref: R410-0366
Pin-Cast base former large x 3, Ref: R411-0000
Pin-Cast base former small x 3, Ref: R411-1000
Pin-Cast rubber rings large (23,5 mm/ 0.93″, for Bi-Pin short, base height 13,5 mm/ 0.53) x 5, Ref: R412-0326
Pin-Cast rubber rings large (27 mm/ 1.06″, for Bi-Pin Long, base height 17,5 mm/ 0.69″) x 5, Ref: R412-0346
Pin-Cast rubber rings large (21,7 mm/ 0.85”, for Smart-Pin, Bi-V-Pin and Pro-Fix, base height 12,5 mm/ 0.49”0) x 5, Ref: R412-0366
Pin-Cast rubber rings small (23,5 mm/ 0.93″, for Bi-Pin short, base height 13,5 mm/ 0.53″) x 5, Ref: R412-1326
Pin-Cast rubber rings small (27 mm/ 1.06″, for Bi-Pin Long, base height 17,5 mm/ 0.69″) x 5, Ref: R412-1346
Pin-Cast rubber rings small (21,7 mm/ 0.85”, for Smart-Pin, Bi-V-Pin and Pro-Fix, base height 12,5 mm/ 0.49”) x 5, Ref: R412-1366
Pin-Cast magnets and magnet holders x 30, Ref: R413-0000
Pin-Cast retention discs x 120, Ref: R414-0000
