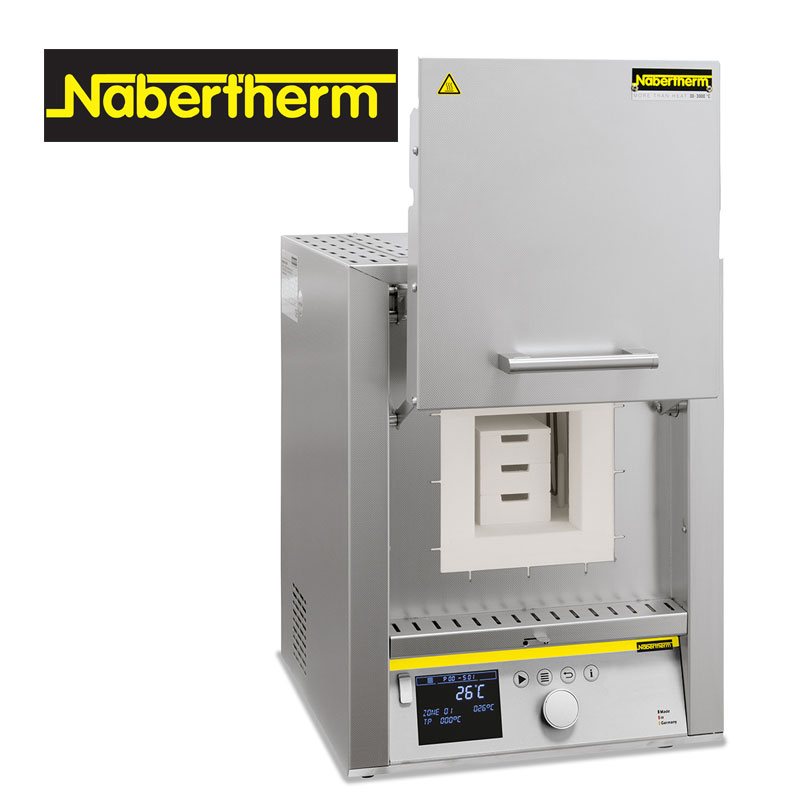

LHT 01/17D Sintering Furnace



POA

Phone for best price 01484 466700

High-Temperature Bottom Loading Furnace up to 1650 °C with Integrated Speed Cooling System for Sintering of Translucent Zirconia

SKU: N-LHT107PN1 Categories: ,

Download Brochure

    These high-temperature furnaces are ideally suited for sintering bridges and crowns made of translucent zirconia. The special heating elements made of molybdenum disilicide promise very good protection against chemical interaction between the charge and the furnace components. The bridges and crowns are loaded in ceramic saggars. These high-temperature furnaces are particularly convincing due to their very good price-performance ratio. The furnaces can be individually programmed for all recommended sintering curves by almost all zirconium manufacturers.

    • Tmax 1650 °C
    • Furnace chamber with a volume of 1 or 4 litres
    • Special heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements
    • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
    • Only fibre materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2
    • Compact design with lift door, opening upwards
    • Scope of delivery includes a starter set for charging on one level, additional levels as additional equipment
    • Adjustable air inlet
    • Furnace chamber can be charged with up to two (LHT 01/17D) or three (LHT 03/17D) saggars, 15 or 25 individual crowns per level (depending on model)
    • Exhaust air opening in the roof
    • Type S thermocouple

    Ref: N-LHT107PN1
